ZK2135E/2500 Deep Hole Drilling Machine with rotating and CNC indexing functions

Brand Name : OEM

Model Number : zk2135/2500

Certification : CE IS09001

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000

Delivery Time : base on order

Packaging Details : Wooden Box

Power of Drill Stem Motor : 5.5 KW

Workpiece Motor Power (Rot/Idx) : 2.2 KW

Oil Pump Motor : 2×5.5

Power of Feed Motor : 1.8 KW

Power of Oil Cooling Machine : 2.8 KW

Total Power : 28KW

Contact Now

ZK2135E/2500 Deep Hole Drilling Machine With Rotating And CNC Indexing Function Of Workpiece Main Spindle

ZK2135E/2500 deep hole drilling machine is designed to be horizontally arranged. The host body is divided into the left part and as workpiece clamping and the right part as drill stem feeding system. The end face is coupled with the screws and pins. Hydraulic chuck and hydraulic center frame are used to clamp workpiece. The basic parts of machine are HT300 precise cast. Ball screw and rolling guide are used for drill stem feeding.



Features

1. Processing method is introduced gun drilling (internal oil coolant and external chip removal)

2. The CNC control system is introduced FUNAC brand.

3. The drilling spindles rotary is frequency adjusted.

4. The workpiece is clamped by hydraulic chuck and center frame.

5. The machine is capable to drill concentric hole, eccentric hole and indexing hole.

Main Parameter

Drilling Ability

1. No. of Spindle: 1 PCS

2. Drilling Diameter Range: φ5φ35 mm

3. Max. Drilling Depth: 2500 mm

4. Wokrpiece Diameter Range: φ270 mm; φ500 mm

5. Max. Length of Workpiece: 2500 mm

6. Max. Eccentric: φ270 mm; φ500 mm

Drilling Speed

1. Max. Drill Stem Rotary Speed: 5500 r/min

2. Feed Speed Range: ≤1500 mm/min

3. Fast Move Speed ≤2000 mm/min

Drilling Accuracy

1. Skewness: ≤1.0/1000 drilling depth(length to diameter ratio≤100)

2. Dimensional Accuracy: IT7IT10

3. Roughness: Ra0.8Ra3.2

Machine Power

1. Power of Drill Stem Motor: 5.5 KW

2. Power of Workpiece’s Rotary and Indexing Motor: 2.2 KW

3. Oil Pump Motor: 2×5.5

4. Power of Feed Motor: 1.8 KW

5. Power of Oil Cooling Machine: 2.8 KW

6. Total Power: 28KW

Hydraulic System

1. Max. Flow: 110 L/Min

2. Max. Pressure: 12 MPa

3. Filter Accuracy: 20 um

4Oil Tank Capacity: 1360 L

Basic Dimension & Weight

1. Ground Area:(L*W*H) 7800*3200*1500 mm

2. Distance between Drill Stem Center and Ground: 1070 mm

3. Weight of Hydraulic System: 2 T

4. Weight of Main Engine: 8 T

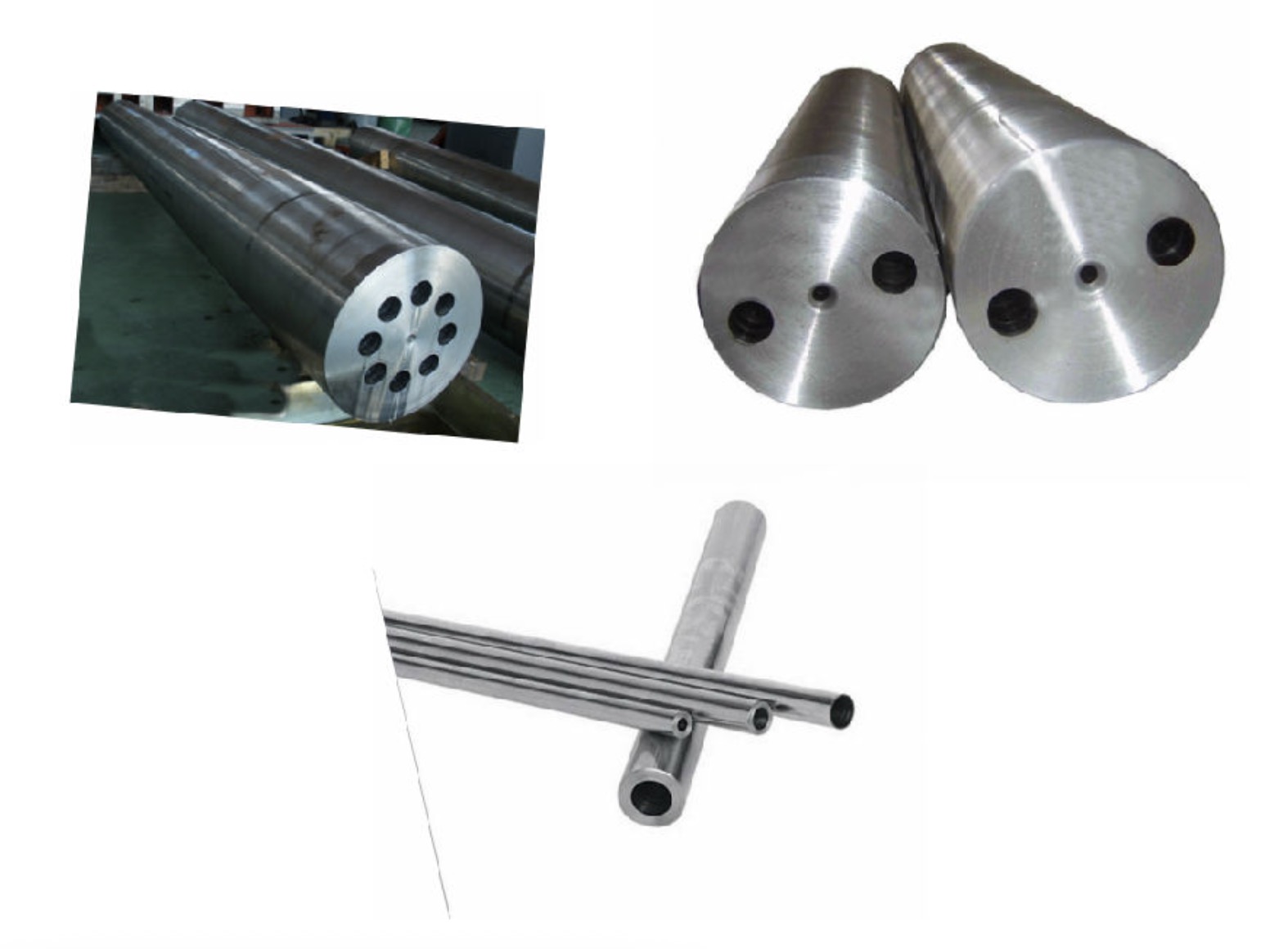

Machine processing part

ZK2135E/2500 Deep Hole Drilling Machine with rotating and CNC indexing functions

Typical application:hydraulic support, cylinder, concentric holes and eccentric holes of shaft parts.

ZK2135E/2500 Deep Hole Drilling Machine with rotating and CNC indexing functions
